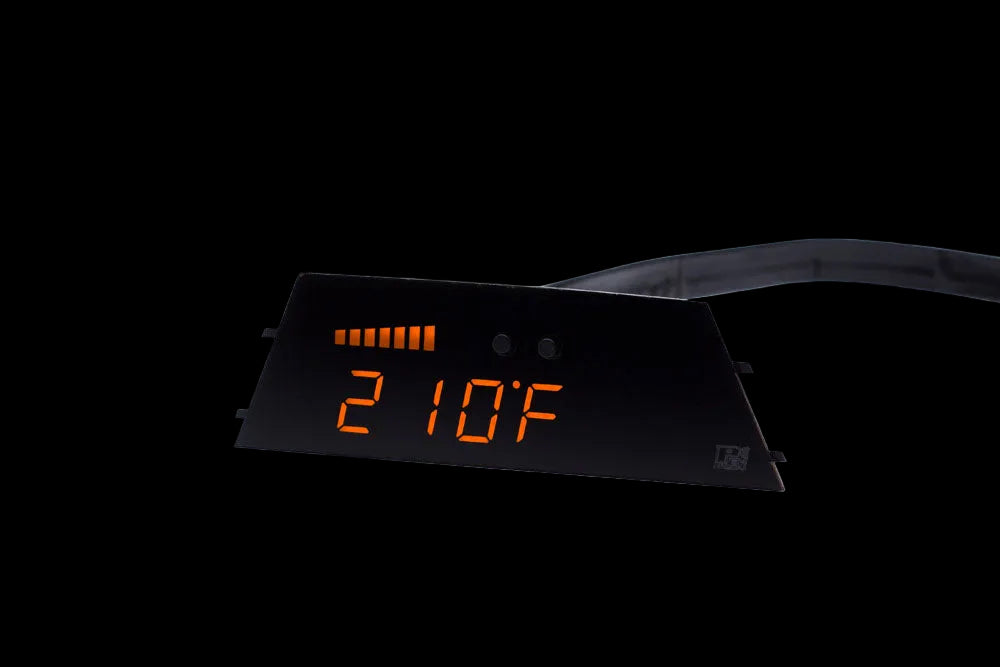

DeutschTuning proudly offers P3 Analog Gauge - BMW F3X / F8X 2011-2019 LHD, Orange Bars / Orange Digits. P3 Digital gauges provide the highest level of OEM integration and color match offering more features than any other gauges in their segment. Starting at a price competitive to single feature old-school needle gauges, they offer unmatched feature to price ratio.

4 Available Analog Readouts:

Analog boost (yellow/purple/Black - dedicated plug for analog boost sensor) *boost tap not included.

Analog input 1 (Brown wire - can read any 0-5 volt linear output sensor)

Analog input 2 (blue wire - can read any 0-5 volt linear output sensor)

Battery voltage (red wire | Black wire - read through power and ground wires)

Optional auto-dim feature (green wire - connect to any circuit that gets power only when the headlamps are on and enable feature in the configuration menu for the display to auto-dim when the headlamps are on)

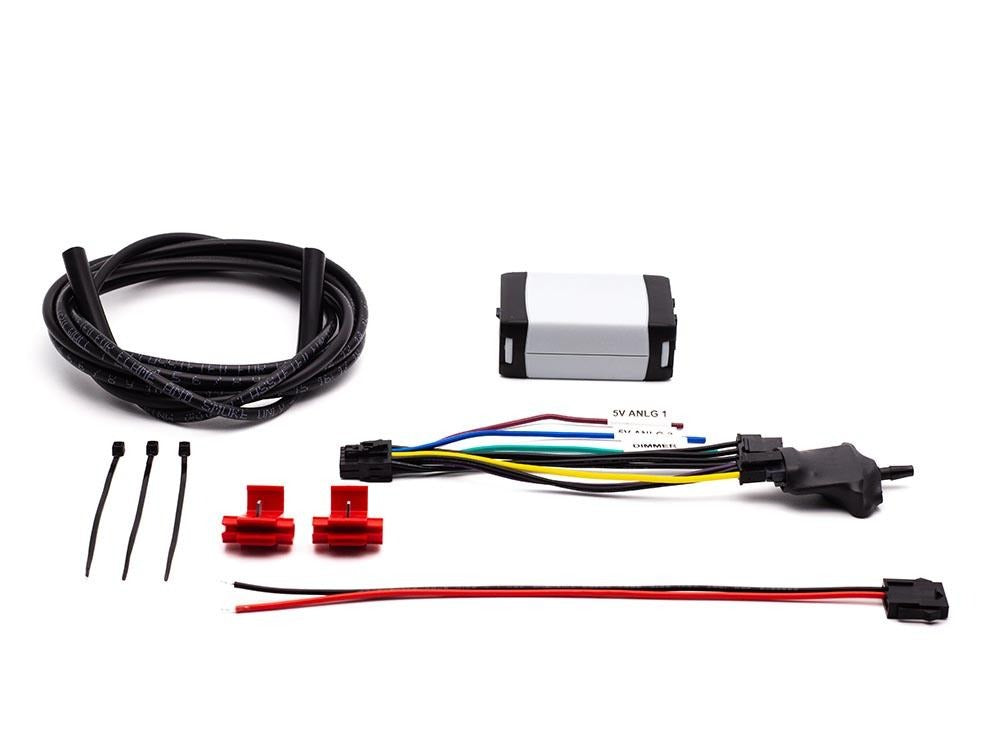

Analog gauge base kit includes:

Integrated display

Analog Box control unit

Main harness

Hard-wire harness

Analog boost sensor *boost tap not included

Approximately 5' of 5/32" O.D. boost tubing with 5/32" I.D. hose at each end

3 zip ties

2 scotchlok wire taps
